YZ2-1 Series quick connector stainless steel bite type pipe air pneumatic fitting
Product Description
The YZ2-1 Series quick connector is made of stainless steel material and has good corrosion resistance and high temperature resistance. They undergo precision processing and quality control to ensure the stability and reliability of the product.
These quick connectors are widely used in industrial fields, such as pharmaceuticals, food processing, chemical engineering, etc. They can be used to connect cylinders, compressors, Pneumatic tool and other equipment to ensure the safe and efficient operation of the gas transmission system.
Technical Specification
|
Fluid |
Air ,if use liquid please contact factory |
|
|
Max.working Pressure |
1.32Mpa(13.5kgf/cm²) |
|
|
Pressure Range |
Normal Working Pressure |
0-0.9 Mpa(0-9.2kgf/cm²) |
|
Low Working Pressure |
-99.99-0Kpa(-750~0mmHg) |
|
|
Ambient Temperature |
0-60℃ |
|
|
Applicable Pipe |
PU Tube |
|
|
Material |
Stainless Steel |
|
|

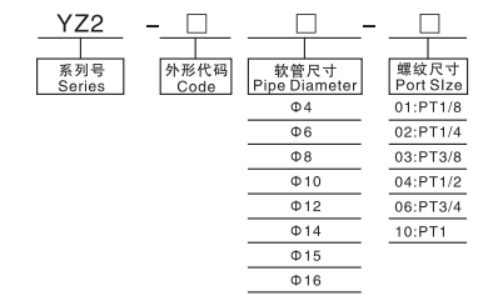

Model |
P |
A |
B |
C1 |
C2 |
L |
|
YZ2-1 φ 6-02 |
PT 1/4 |
14 |
14.5 |
14 |
14 |
40 |
|
YZ2-1 φ 8-02 |
PT 1/4 |
14 |
15.3 |
14 |
17 |
41 |
|
YZ2-1 φ 10-02 |
PT 1/4 |
14 |
15.3 |
17 |
19 |
41 |
|
YZ2-1 φ 10-03 |
PT 3/8 |
15 |
15.3 |
17 |
19 |
42 |
|
YZ2-1 φ 12-02 |
PT 1/4 |
14 |
17.5 |
19 |
22 |
45 |
|
YZ2-1 φ 12-03 |
PT 3/8 |
13.8 |
19 |
22 |
22 |
43.5 |
|
YZ2-1 φ 12-04 |
PT 1/2 |
15 |
19 |
22 |
22 |
45 |
|
YZ2-1 φ 14-04 |
PT 1/2 |
17 |
19 |
22 |
24 |
47 |
