SPX Series one touch 3 way Y type tee male thread air hose tube connector plastic pneumatic quick fitting

SPX Series one touch 3 way Y type tee male thread air hose tube connector plastic pneumatic quick fitting Featured Image
  • SPX Series one touch 3 way Y type tee male thread air hose tube connector plastic pneumatic quick fitting

Short Description:

The SPX series one touch three-way Y-type three-way external thread air hose connector is a plastic pneumatic quick connect fitting. The joint is made of high-quality plastic material, which has excellent wear resistance and corrosion resistance. It adopts a one touch connection method, which can quickly and safely connect and disconnect air hoses, improving work efficiency. In addition, the connector also features a Y-shaped tee design that allows for the simultaneous connection of two hoses, facilitating the distribution of air to different work stations. The external thread design makes the joint more secure and reliable, which can prevent the occurrence of air leakage. This type of joint is widely used in fields such as pneumatic equipment and industrial automation, and is a reliable and efficient pneumatic connector.


Product Detail

Product Tags

Technical Specification

. Feature :
We strive to be perfect in every detail.
Brass and plastic material make fittings light and compact, metal rivet nut realizes
longer service life. The sleeve with various sizes for option is very easy to connect
and disconnect. Good sealing performance ensures high quality.
Note :
1. NPT, PT, G thread are optional.
2. Pipe sleeve color can be customized.
3. Special type of fttings also can be customized.

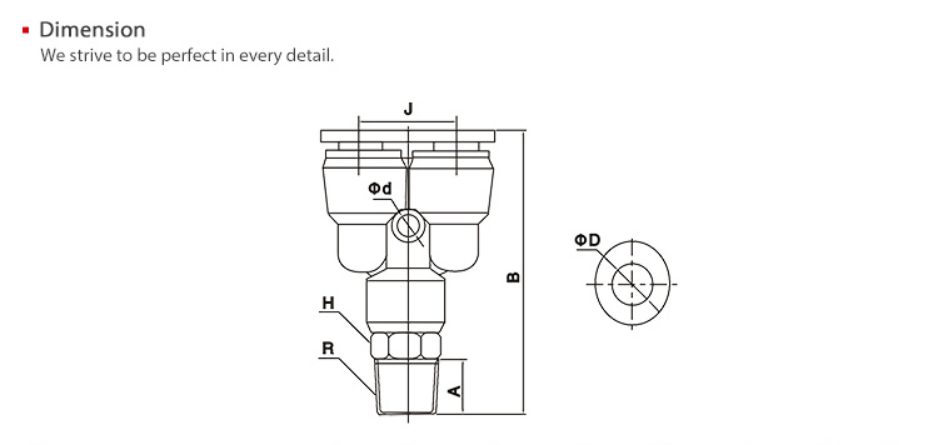

Inch Pipe

Metric Pipe

ØD

R

A

B

H

J

Ød

SPX5/32-M5

SPX4-M5

4

M5

3.5

42.5

10

11.5

2.5

SPX5/32-01

SPX4-01

4

PT1/8

7

43

10

11.5

2.5

SPX5/32-02

SPX4-02

4

PT1/4

9

46

14

11.5

2.5

SPX1/4-M5

SPX6-M5

6

M5

3.5

45

12

13.5

3.5

SPX1/4-01

SPX6-01

6

PT1/8

7

46

12

13.5

3.5

SPX1/4-02

SPX6-02

6

PT1/4

9

48.5

14

13.5

3.5

SPX1/4-03

SPX6-03

6

PT3/8

10

48.5

17

13.5

3.5

SPX1/4-04

SPX6-04

6

PT1/2

10

51

21

13.5

3.5

SPX5/16-01

SPX8-01

8

PT1/8

8

51

14

16.5

3.5

SPX5/16-02

SPX8-02

8

PT1/4

10

53

14

16.5

4

SPX5/16-03

SPX8-03

8

PT3/8

10

53.5

17

16.5

4

SPX5/16-04

SPX8-04

8

PT1/2

11

55

21

16.5

4

SPX3/8-01

SPX10-01

10

PT1/8

8

56.5

17

19

4

SPX3/8-02

SPX10-02

10

PT1/4

10

58.5

17

19

4

SPX3/8-03

SPX10-03

10

PT3/8

10

58.5

17

19

4

SPX3/8-04

SPX10-04

10

PT1/2

11

59.5

21

19

4

SPX1/2-01

SPX12-01

12

PT1/8

8

62

19

21.5

4

SPX1/2-02

SPX12-02

12

PT1/4

10

64

19

21.5

4

SPX1/2-03

SPX12-03

12

PT3/8

10

64

19

21.5

4

SPX1/2-04

SPX12-04

12

PT1/2

11

65.5

21

21.5

4

SPX14-03

14

PT3/8

12

64

24

23.5

4

SPX14-04

14

PT1/2

15

67

24

23.5

4

SPX16-03

16

PT3/8

12

75.5

24

27

4

SPX16-04

16

PT1/2

13

78.5

24

27

4
