SPOC Series pneumatic one touch push to connect brass quick fitting air hose tube connector round male straight fitting
Product Description
The SPOC series quick connectors also have good sealing performance, ensuring that gas leakage does not occur at the connection. It is suitable for various pneumatic systems, such as compressed air systems, pneumatic tools, and so on. Whether for household use or industrial applications, this connector can provide reliable connection effects.
In short, the SPOC series pneumatic one click quick connect brass quick connect air hose pipe joint circular direct connect is a convenient, fast, reliable, and durable connecting device. Its design is simple, easy to install, and suitable for various pneumatic systems. Whether for personal use or industrial applications, it can meet the needs and provide reliable connectivity.
Technical Specification
■Feature :
We strive to be perfect in every detail.
Brass material makes fittings light and compact, metal rivet nut realizeslonger service life.
The sleeve with various sizes for option is very easy to connectand disconnect.
Good sealing performance ensures high quality.
Note :
1. NPT, PT, G thread are optional.
2. Pipe sleeve color can be customized.
3. Special type of fttings also can be customized.
|

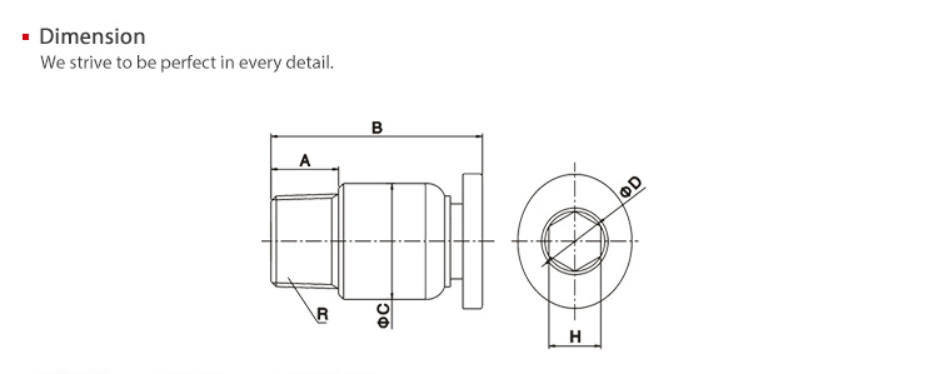

Inch Pipe |
Metric Pipe |
ΦD |
R |
A |
B |
ΦC |
H |
|
SPOC5/32-M5 |
SPOC4-M5 |
4 |
M5 |
4.5 |
23 |
10 |
2 |
|
SPOC5/32-01 |
SPOC4-01 |
4 |
PT1/8 |
7 |
23.5 |
10 |
3 |
|
SPOC5/32-02 |
SPOC4-02 |
4 |
PT1/4 |
9 |
20 |
14 |
3 |
|
SPOC1/4-M5 |
SPOC6-M5 |
6 |
M5 |
3.5 |
23.5 |
12 |
2 |
|
SPOC1/4-01 |
SPOC6-01 |
6 |
PT1/8 |
7 |
22 |
12 |
4 |
|
SPOC1/4-02 |
SPOC6-02 |
6 |
PT1/4 |
9 |
22 |
14 |
4 |
|
SPOC1/4-03 |
SPOC6-03 |
6 |
PT3/8 |
10 |
21 |
17 |
4 |
|
SPOC1/4-04 |
SPOC6-04 |
6 |
PT1/2 |
11 |
23 |
21 |
4 |
|
SPOC5/16-01 |
SPOC8-01 |
8 |
PT1/8 |
8 |
27 |
14 |
4 |
|
SPOC5/16-02 |
SPOC8-02 |
8 |
PT1/4 |
10 |
25 |
14 |
6 |
|
SPOC5/16-03 |
SPOC8-03 |
8 |
PT3/8 |
10 |
22 |
17 |
6 |
|
SPOC5/16-04 |
SPOC8-04 |
8 |
PT1/2 |
11 |
23.5 |
21 |
6 |
|
SPOC3/8-01 |
SPOC10-01 |
10 |
PT1/8 |
8 |
30.5 |
17 |
4 |
|
SPOC3/8-02 |
SPOC10-02 |
10 |
PT1/4 |
10 |
31.5 |
17 |
6 |
|
SPOC3/8-03 |
SPOC10-03 |
10 |
PT3/8 |
10 |
29 |
17 |
8 |
|
SPOC3/8-04 |
SPOC10-04 |
10 |
PT1/2 |
11 |
25 |
21 |
8 |
|
SPOC1/2-01 |
SPOC12-01 |
12 |
PT1/8 |
8 |
32.5 |
19 |
4 |
|
SPOC1/2-02 |
SPOC12-02 |
12 |
PT1/4 |
10 |
34 |
19 |
6 |
|
SPOC1/2-03 |
SPOC12-03 |
12 |
PT3/8 |
10 |
31 |
19 |
8 |
|
SPOC1/2-04 |
SPOC12-04 |
12 |
PT1/2 |
11 |
30 |
21 |
8 |
|
|
SPOC14-03 |
14 |
PT3/8 |
12 |
36.5 |
21 |
8 |
|
|
SPOC14-04 |
14 |
PT1/2 |
13 |
34.5 |
21 |
10 |
|
|
SPOC16-03 |
16 |
PT3/8 |
12 |
39.5 |
24 |
8 |
|
|
SPOC16-04 |
16 |
PT1/2 |
14 |
40.5 |
24 |
10 |
