SPC Series Male Thread Straight Brass Push To Connect Air Quick Pneumatic Fitting
Product Description
1.Material reliability: The joint is made of brass material, which has good corrosion resistance and high temperature resistance, ensuring long-term stable connection effect.
2.Quick connection: This connector adopts a push-in design, which allows for quick connection by simply inserting the pipeline into the connector, saving installation time and labor costs.
3.Reliable sealing: The joint is equipped with a sealing ring inside, ensuring reliable gas sealing, preventing gas leakage, and improving the working efficiency of the system.
4.Simple operation: The connection and separation of connectors are very easy, and the operation can be completed by pressing the external locking button without the need for additional tools.
5.Widely applicable: This connector is suitable for various pneumatic systems, such as compressed air systems, hydraulic systems, etc., and is widely used in industrial automation equipment, automotive manufacturing, pharmaceutical and other fields.

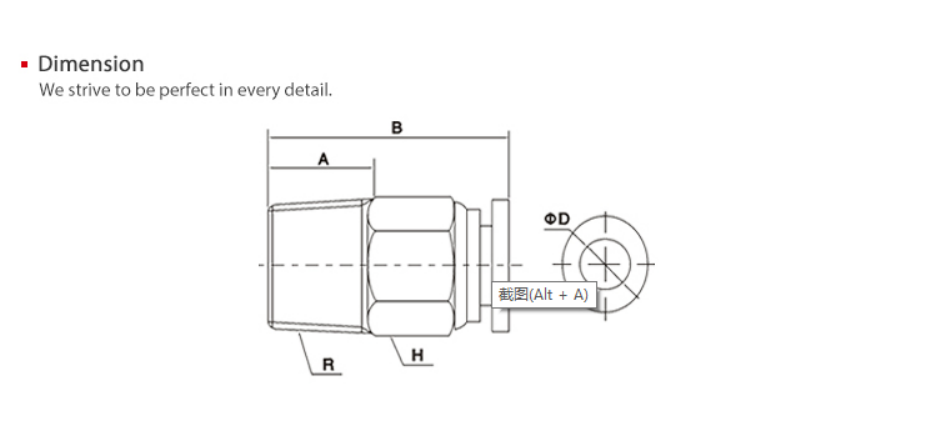

Technical Specification
Feature :
We strive to be perfect in every detail.
Brass material makes fttings light and compact, metal rivet nut realizes longer service life.
The sleeve with various sizes for option is very easy to connect and disconnect.
Good sealing performance ensures high quality.
Note :
1. NPT, PT, G thread are optional.
2. Pipe sleeve color can be customized.
3. Special type of fttings also can be customized.
|
Inch Pipe |
Metric Pipe |
φD |
R |
A |
B |
H |
|
SPC5/32-M5 |
SPC4-M5 |
4 |
M5 |
4.5 |
22 |
10 |
|
SPC5/32-01 |
SPC4-01 |
4 |
PT1/8 |
7 |
20 |
10 |
|
SPC5/32-02 |
SPC4-02 |
4 |
PT1/4 |
9 |
20 |
14 |
|
SPC1/4-M5 |
SPC6-M5 |
6 |
M5 |
3.5 |
21.5 |
12 |
|
SPC1/4-01 |
SPC6-01 |
6 |
PT1/8 |
7 |
21.5 |
12 |
|
SPC1/4-02 |
SPC6-02 |
6 |
PT1/4 |
9 |
22 |
14 |
|
SPC1/4-03 |
SPC6-03 |
6 |
PT3/8 |
10 |
21.5 |
17 |
|
SPC1/4-04 |
SPC6-04 |
6 |
PT1/2 |
11 |
23 |
21 |
|
SPC5/16-01 |
SPC8-01 |
8 |
PT1/8 |
8 |
27 |
14 |
|
SPC5/16-02 |
SPC8-02 |
8 |
PT1/4 |
10 |
25 |
14 |
|
SPC5/16-03 |
SPC8-03 |
8 |
PT3/8 |
10 |
22 |
17 |
|
SPC5/16-04 |
SPC8-04 |
8 |
PT1/2 |
11 |
23.5 |
21 |
|
SPC3/8-01 |
SPC10-01 |
10 |
PT1/8 |
8 |
31 |
17 |
|
SPC3/8-02 |
SPC10-02 |
10 |
PT1/4 |
10 |
31.5 |
17 |
|
SPC3/8-03 |
SPC10-03 |
10 |
PT3/8 |
10 |
29 |
17 |
|
SPC3/8-04 |
SPC10-04 |
10 |
PT1/2 |
11 |
25.5 |
21 |
|
SPC1/2-01 |
SPC12-01 |
12 |
PT1/8 |
8 |
32.5 |
19 |
|
SPC1/2-02 |
SPC12-02 |
12 |
PT1/4 |
10 |
33.5 |
19 |
|
SPC1/2-03 |
SPC12-03 |
12 |
PT3/8 |
10 |
31 |
19 |
|
SPC1/2-04 |
SPC12-04 |
12 |
PT1/2 |
11 |
30.5 |
21 |
|
/ |
SPC14-03 |
14 |
PT3/8 |
11 |
36.5 |
21 |
|
/ |
SPC14-04 |
14 |
PT1/2 |
13 |
34.5 |
21 |
|
/ |
SPC16-03 |
16 |
PT3/8 |
11 |
39.5 |
24 |
|
/ |
SPC16-04 |
16 |
PT1/2 |
12 |
39.5 |
24 |
