KQ2D Series pneumatic one touch air hose tube connector male straight brass quick fitting

Short Description:

The KQ2D series pneumatic one click air pipe connector is an efficient and convenient connector suitable for connecting air pipes in pneumatic systems. This connector adopts a male direct brass quick connector, which can quickly and firmly connect the air pipe, ensuring smooth and unobstructed gas flow.

This connector has the characteristic of being simple and easy to use, and can be connected with just a light press without the need for additional tools. Its reliable connection ensures that the connected trachea does not become loose or fall off, improving work efficiency and safety.

The material of KQ2D series connectors is brass, which has good corrosion resistance and high temperature resistance, and is suitable for various harsh working environments. Its design is compact, compact in size, and easy to install and use.

Send email to us

Product Detail

Product Tags

Technical Parameter

Fluid		Air ,if use liquid please contact factory
Max.working Pressure		1.32Mpa(13.5kgf/cm²)
Pressure Range	Normal Working Pressure	0-0.9 Mpa(0-9.2kgf/cm²)
	Low Working Pressure	-99.99-0Kpa(-750~0mmHg)
Ambient Temperature		0-60℃
Applicable Pipe		PU Tube

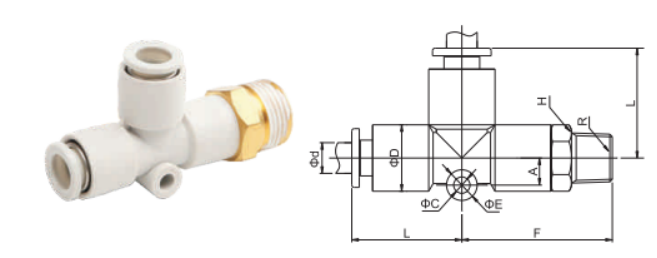

Model	φd	L	φD	φA	F	φC	φE	R	H(Hexagon)
KQ2D4-M5	4	19.5	10.5	4	25.5	6	3.2	M5	12
KQ2D4-01	4	19.5	10.5	4	29	6	3.2	PT 1/8	12
KQ2D4-02	4	19.5	10.5	4	31	6	3.2	PT 1/4	14
KQ2D6-M5	6	21	12.8	5.5	27	6	3.2	M5	14
KQ2D6-01	6	21	12.8	5.5	30.5	6	3.2	PT1/8	14
KQ2D6-02	6	21	12.8	5.5	32.5	6	3.2	PT 1/4	14
KQ2D6-03	6	21	12.8	5.5	32.5	6	3.2	PT3/8	17
KQ2D8-01	8	24	15.5	6.5	33.5	8	4.2	PT1/8	17
KQ2D8-02	8	24	15.5	6.5	35.5	8	4.2	PT1/4	17
KQ2D8-03	8	24	15.5	6.5	35.5	8	4.2	PT3/8	17
KQ2D10-01	10	27	18.5	7.5	36.5	8	4.2	PT1/8	19
KQ2D10-02	10	27	18.5	7.5	38.5	8	4.2	PT 1/4	19
KQ2D10-03	10	27	18.5	7.5	38.5	8	4.2	PT3/8	19
KQ2D10-04	10	27	18.5	7.5	39.5	8	4.2	PT1/2	21
KQ2D12-02	12	30	21	8.5	40.5	8	4.2	PT 1/4	21
KQ2D12-03	12	30	21	8.5	40.5	8	4.2	PT3/8	21
KQ2D12-04	12	30	21	8.5	41.5	8	4.2	PT1/2	21
