CJ1 Series stainless steel single acting mini type pneumatic standard air cylinder
Product Description
The cylinder has high efficiency and stable performance, and can reliably realize the work task. Its durability and reliability are ensured by precision processing and selection of high-quality materials. In addition, the cylinder has good sealing performance and can effectively prevent air leakage.
CJ1 series cylinders are widely used in various industries, such as machinery manufacturing, automation equipment, electronic industry and other fields. It is often used in the pushing and pulling of conveyor belt, the control of clamping device, the manipulator of automatic production line and other working occasions.
Technical Specification
|
Bore Size(mm) |
2.5 |
4 |
|
Acting Mode |
Pre-shrink Single Acting |
|
|
Working Media |
Cleaned Air |
|
|
Working Pressure |
0.1~0.7Mpa(1-7kgf/cm²) |
|
|
Proof Pressure |
1.05Mpa(10.5kgf/cm²) |
|
|
Working Temperature |
-5~70℃ |
|
|
Buffering Mode |
Without |
|
|
Port Size |
O.D.4mm I.D.2.5mm |
|
|
Body Material |
Stainless Steel |
|
|
Bore Size(mm) |
Standard Stroke(mm) |
|
2.5 |
5.10 |
|
4 |
5,10,15,20 |
|

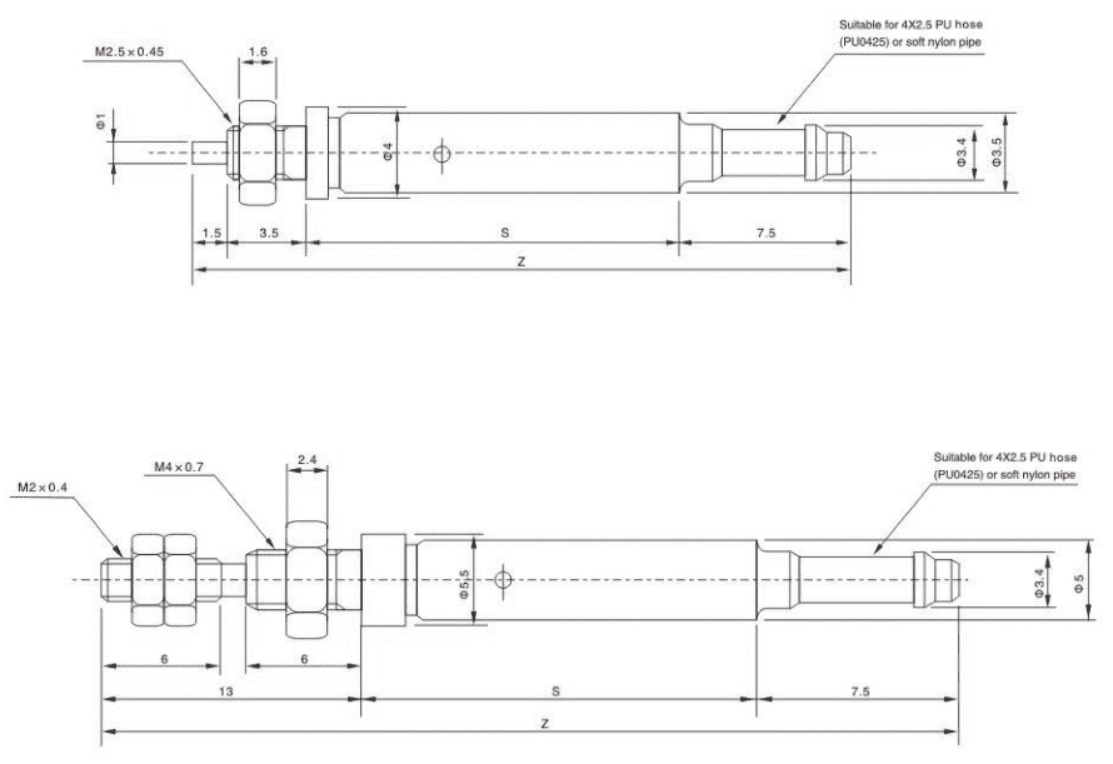

Bore Size(mm) |
S |
Z |
||||||
|
5 |
10 |
15 |
20 |
5 |
10 |
15 |
20 |
|
|
2.5 |
16.5 |
25.5 |
|
|
29 |
38 |
|
|
|
4 |
19.5 |
28.5 |
37.5 |
46.5 |
40 |
49 |
58 |
67 |
